Manual Strapping Product Range

PACK KING Manual Strapping Systems - Poly

  • Polypropylene Machine And Hand Strapping (PE)
  • Polyester Machine Strapping (PET). Heavy Duty. Green.
  • Woven (Polyester) Strapping. Flexible. Tough. 76mm Core
  • Manual Strapping Tools. For Use With Seals.
  • Mobile Strapping Dispensers
  • Auto Tensioning And Welding Combination Tool. Battery Operated
  • Seals / Crimps And Buckles. Galvanized Steel
  • Plastic Buckles
  • Steel Strapping and Tools
Polypropylene Machine And Hand Strapping (PE)

This strap is used in conjunction with a machine tensioner and sealer, or using hand tools such as a tensioner and crimper and with seals. Optionally, buckles – plastic or wire – can be used, with manual tensioning or hand tensioning tool.

Polypropylene Machine And Hand Strapping (PE)
Model PP-1206BM (MACHINE)

- 12mm x .63mm x 3000 Mtrs. Blue PP Premium. 130 Kg BS. 200mm core.

Model PP-1206WM (MACHINE)

- 12mm x .63mm x 3000 Mtrs. Clear PP Premium. 130 Kg BS. 200mm core.

Model PP-1206H (HAND)

- 12mm x .63mm x 1000 Mtrs. Blue. 80 Kg BS.

Model PP-1506H (HAND)

- 15mm x .6mm x 1000 Mtrs. 130 Kg BS.

Model PP-1508HB (HAND)

- 15mm x .8mm x 1000 Mtrs. Black HD. 250 Kg BS.

Model PP-1909HB (HAND)

- 19mm x .9mm x 1000 Mtrs. Black HD. 400 Kg BS.

Model PP-1910HB (HAND)

- 19mm x 1.0mm x 1000 Mtrs. Black HD. 405 Kg BS. Core 150mm dia

envelope-iconGet in touch
Strapping. Polypropylene. Pp. Hand
Polyester Machine Strapping (PET). Heavy Duty. Green.

Used in conjunction with buckles. Manually tensioned or hand machine tensioned.

Polyester Machine Strapping (PET). Heavy Duty. Green.
Model PET-1307E

- 12mm x .7mm x 1900 Mtrs. Embossed. Core size 400mm.

Model PET-1607E

- 16mm x .7mm x 1450 Mtrs. Embossed. Core size 400mm.

Model PET-1609E

- 16mm x .9mm x 1100 Mtrs. Embossed. Core size 400mm.

Model PET-1609S

- 16mm x .9mm x 1100 Mtrs. Smooth. Core size 400mm.

Model PET-1910E

- 19mm x 1mm x 800 Mtrs. Embossed. Core size 400mm.

Model PET-2510S

- 25mm x 1mm x 600 Mtrs. Smooth. 967 Kg BS. Core size 400mm.

envelope-iconGet in touch
Strapping. Polyester Pet
Woven (Polyester) Strapping. Flexible. Tough. 76mm Core

Used with buckles to hand tension loads. Can be re-tensioned at any time. The soft nature of the strap lends itself to restraining easily marked items and is flexible enough to prevent coiling.

Woven (Polyester) Strapping. Flexible. Tough. 76mm Core
Model WPS-16S

- 1 Blue line. 16mm x 1000 Mtrs. 350 Kg BS.

Model WPS-19H

- 2 Red lines. 19mm x 500 Mtrs. 1100 Kg BS.

Model WPS-19L

- 1 Blue line. 19mm x 850 Mtrs. 590 Kg BS.

Model WPS-19S

- 1 Red line. 19mm x 700 Mtrs. 840 Kg BS.

Model WPS-32

- White. 32mm x 125 Mtrs. 2300 Kg BS.

envelope-iconGet in touch
Strapping. Polyester. Woven. Wps
Manual Strapping Tools. For Use With Seals.

Tensioners and crimpers

Tensioners and Model
Model HPT-50

- For PET or PP up to 19mm

Model HPT-95

- For PET up to 38mm

Model CHD-XL

- For woven poly or composite up to 50mm

envelope-iconGet in touch

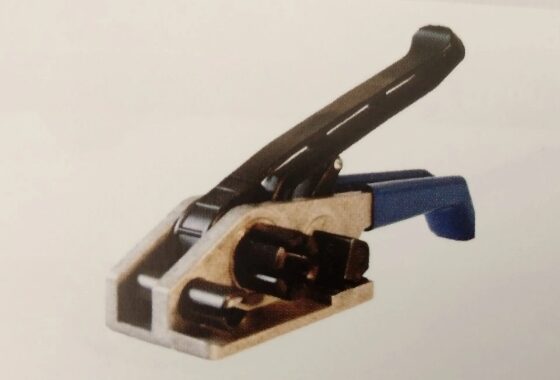

Tensioner Model Image
Crimper Models
Model OFH-12

- For PET or PP up to 12mm

Model OFH-16

- For PET or PP up to 16mm

Model OFH-19

- For PET or PP up to 19mm

envelope-iconGet in touch
Strapping Tool
Combo Manual Strapping Tool Models
Model MUL-350

- For PET or PP up to 16mm

envelope-iconGet in touch
Crimper Model
Mobile Strapping Dispensers

To keep your poly strap reels in place and to provide an orderly take off – without uncoiling, along with a container in which your strapping tools can reside, a Mobile Dispenser is a worthwhile investment.

Strapping Dispensers Models
Model CSD-76T

- For core size 76mm. Max dia 400mm

Model PMC-200

- For core size 200mm. Max dia 500mm

Model PSD-1

- For core size 400mm. Max dia 650mm

Strap Feeder Models
Model SF-135

-1350mm long.Come sin pack of 10 rods.Made from flexible plastic.Holds strap whilst pushing under pallets.

envelope-iconGet in touch
Strapping Dispenser. Pic
Auto Tensioning And Welding Combination Tool. Battery Operated

An automatic hand-held poly strap tensioner and sealer. Feed the strap into the machine. Press one button and it tensions to your pre-set limit. Press the second button and it seals the high frequency binds the strap together.

Use only premium auto strap for this machine.

Auto tensioning and welding combination tool. Battery operated - models
Model SMCT-1316

- For PET and Poly Strapping. 13 – 16mm.

envelope-iconGet in touch
Strapping Motorized Combo Tool. Model Smct 1316
Model SMCT-1619

- For PET Strapping 16-19mm. Heavy Duty.

envelope-iconGet in touch
Strapping Motorized Combo Tool. Model Smct 1619
Seals / Crimps And Buckles. Galvanized Steel
Seals / Crimps And Buckles. Galvanized Steel - Models
Model PH-13

- Seal for PP and Light PE. 12 x 30mm.

Model PH-16

- Seal for PP. 16 x 30mm.

Model PH-19

- Seal for PP. 19 x 30mm.

envelope-iconGet in touch
Seals Crimps. Pic
Buckle Models
Model CWB-4

- Buckle for PEW. 13mm.

Model CWB-5

- Buckle for PEW. 16mm.

Model CWB-6

- Buckle for PEW. 19mm.

Model CWB-7

- Buckle for PEW. 25mm.

Model CWB-8

- Buckle for PEW. 32mm.

envelope-iconGet in touch

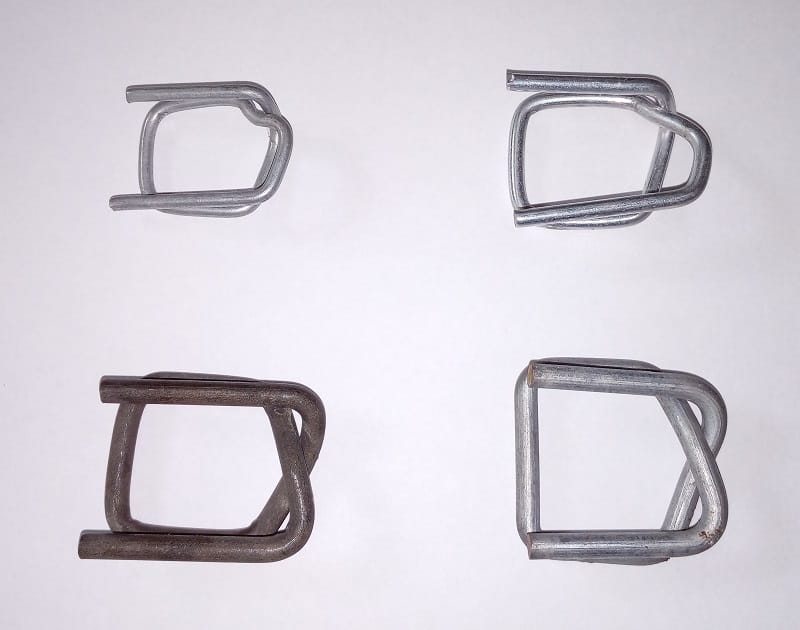

Wire Buckles. Pic
Plastic Buckles
Plastic Buckle Models
Model PPB-4

- For hand PP. 1000 pcs.

Model PPB-5

- For hand PP. 16mm. 1000 pcs.

envelope-iconGet in touch
Plastic Buckles. Pic
Steel Strapping and Tools

Since steel is sold on weight, the price differs according to volume and frequency. However, Pack King can access these products on your behalf.

Kindly give us a call at +61 3 9720 0425 to inquire about the prices.

Strap Goods Image
Why Strap Goods?

Stretch wrapping has become the fastest way of securing a load, by unitizing it to the pallet base. For most loads this is sufficient, but there are many instances where strapping can make the load stronger by securing it more tightly to the pallet, or by binding the load more securely.

Take, for instance, four 200 Ltr steel drums on a pallet. By stretch wrapping the load, the film is expected to constrain 1000 Kgs of load from shifting off the pallet in the case of an accident, whereas if the four drums had been strapped horizontally, then the drums had been strapped to the pallet in four pairs, the chances of that load becoming separated or moving off the pallet are greatly diminished. The cost of the strapping under these conditions is nowhere near the cost of the damage to the drum’s contents; other freight; the carrier’s vehicle; other vehicles; the environment, etc.so strapping can be cheap insurance when used judiciously.

Strapping also helps to prevent round objects from moving around once they have been bundled. The same is for the removal of round objects. If they are bundled, then less time is taken to load and unload, and bundles are more stable than individual items. Shipping of one bundle makes more economic sense than several individual items.

If the volume of goods you are strapping is not high, or if you need to occasionally strap product onto pallets, or to secure and bundle, then light gauge poly strapping is the answer.

If, however, you need to unitise a heavy load, then heavy gauge poly strapping is called for. Heavy-duty poly has taken over from steel strapping in most instances, simply because it caters for a small amount of stretch if the load shifts, whereas steel strap will simply come loose.

Manual strapping requires a Tensioning Tool, a Crimping Tool and Crimps or Seals as they are otherwise known.

First, select the gauge of poly strap you need to use. This is shown as a load kilogram rating. For heavy loads requiring many constraints, go for the higher load rating.

Your Tensioning and Crimping tools must match the force required to hold and seal the strap.

There is also a choice between manual and powered tensioning tools. Powered Tensioners are usually used with heavy gauge strapping, and are battery operated. It allows the operator to hold and use the tensioner in one hand, after placing the strap end and the strap loop into the tensioner body.

A squeeze of the trigger and the strap tensions then is friction welded at the same time, thereby creating a bonded seal. The loop is cut, and the Tensioner removed.

When unitising a load to the pallet, the poly strap end is passed under the pallet using either a flexible rod with a strap clip, or a broom handle, or a specialised piece of equipment that feeds the strap under, up and over to meet the operator, who then simply takes the loop and the end and feeds them into the tensioner. Naturally, this type of equipment is used only when a potential health and safety risk has been identified with strap feeding, or the volume of goods being strapped makes the purchase worthwhile.
